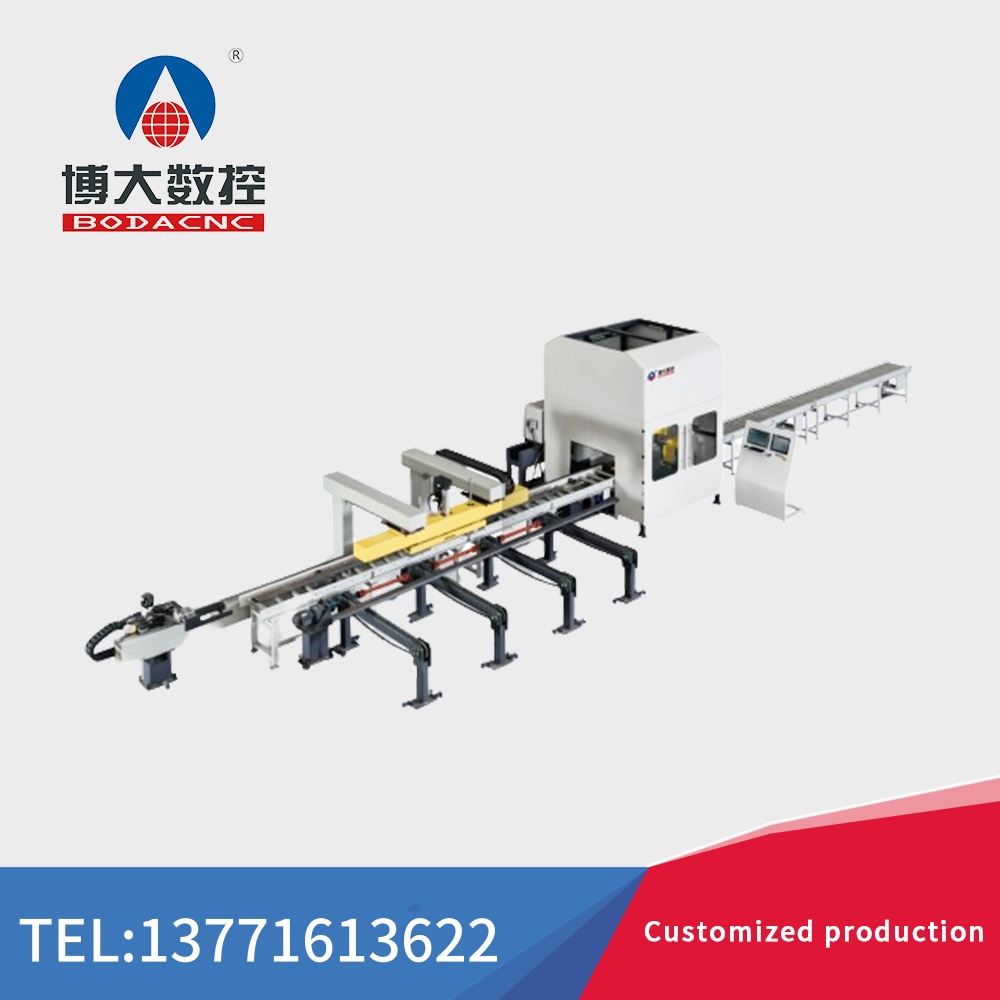

龍門式型鋼切割機

產品概述I DESCRIPTION

設備總體結構整合博大數控的智能化數控切割設備；實現型材切割的功能；切割中心采用五軸聯動龍門式桁架結構，割炬姿態控制采用CNC+TCP形式，實現提精度，提效率，提升用戶體驗；本機床可根據用戶的整體需求高度定制化生產。

The overall structure of the equipment integrates the intelligent CNC cutting equipment of Boda CNC;Realize the function of profile cutting;The cutting center adopts a five axis linkage gantrytruss structure,and the cutting torch attitude control adopts the form of CNC+TCP to improve accuracy efficiency and user experience;This machine tool can be highly customized for production according to the overall needs of users.

機型特點I MODEL FEATURES

整體布局模塊化設計、模塊式組裝、可擴展分步按調。

電氣系統更新，按較新數智化切割需求配置。

機床自動化；配套自動編程軟件。

操作簡易化：簡化自動化切割工序；省人力物力、降操作要求。

Modular design for overall layout,modular assembly,and scalablestep-by-step adjustment.

Electrical system update,configured according to the latest inteiligentcutting requirements.

Machine tool automation;Equipped with automatic programming software.

Simplify operation:Simplify automated cutting processes;Save manpowerand resources,reduce operational requirements.

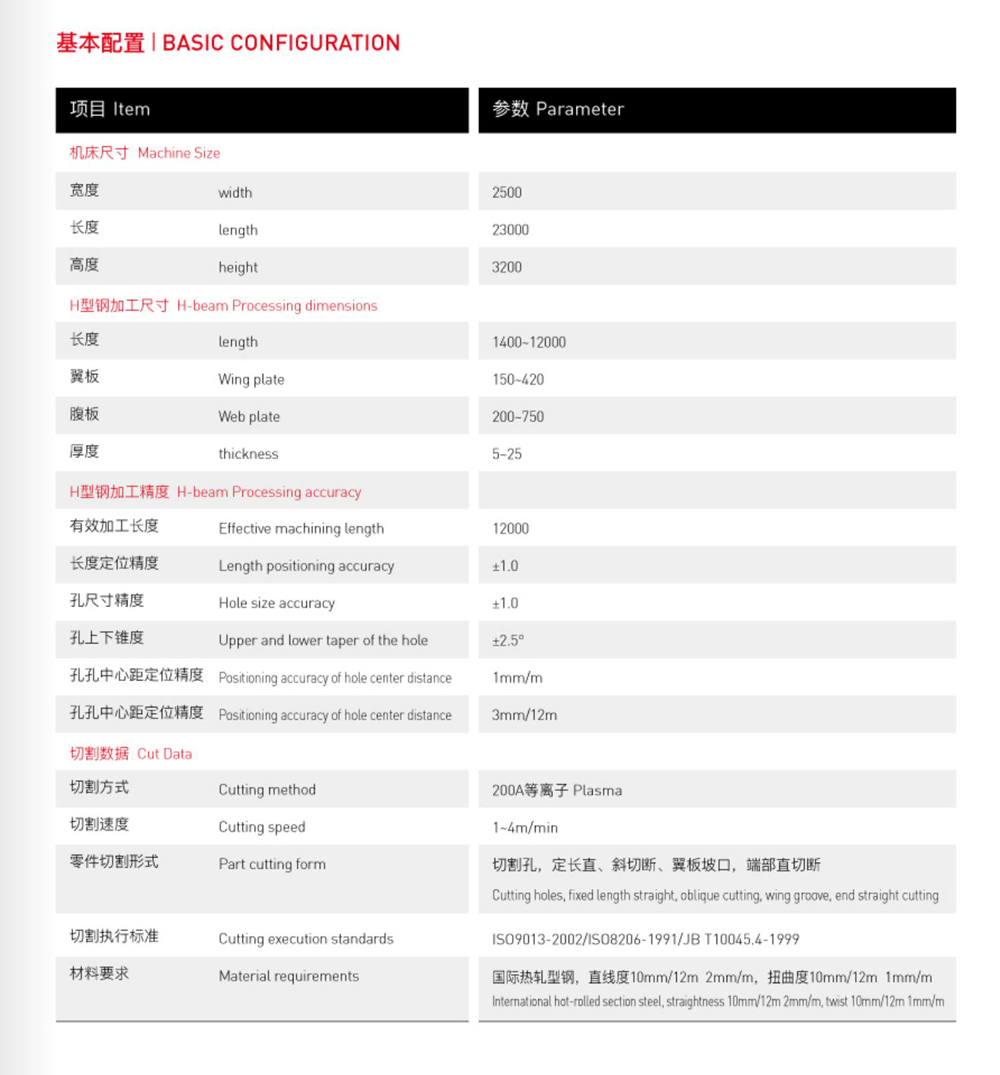

可擴展配套設備|SCALABLE SUPPORTING EQUIPMENT

輔助類Auxiliary categon

自動上料裝置

自動下料裝置

H型鋼形狀檢測裝置

automatic feeding device

automatic cutting device

H-shaped steel shape detection device

防護類Protection category

煙塵凈化裝置

切割區隔離鈑金房

smoke and dust purification device

cutting area isolation sheet metal room

管理軟件類Management software

CMS工單派發系統

TEKLA軟件轉化軟件

CMS work order distribution system

TEKLA software conversion software

具體模塊介紹ISPECIFIC MODULE INTRODUCTION

切割中心Auxilary calegory

CNC+TCP:采用數控龍門桁架式結構，X、Y、Z、U、V五軸何服聯動，X、Y、Z實現空間任意位置定位，U、V實現割qiang空間姿態控制。龍門導軌方向驅動采用雙邊何服同步控制。

切割中心為龍門切割專門用型號，固定底盤結構；定位模塊使用的汽缸動力夾緊裝置，包括側面夾緊和頂面壓固。在上料側和下料側都有固定，保證切割進行中型鋼的穩定。

CNC+TCP:CNC gantry truss structure is adopted,with five axis servo linkage of X,Y.Z.U and V.X.Y and Z realize positianing at anyposition in space,and U and V realize attitude control of cutting gun in space.The directional drive of the gantry guide adopts bilat-eral servo synchronous control.

The cutting center is a special model for gantry cutting.with a fixed chassis structure;The cylinder power clamping device used inthe positioning module includes side clamping and top pressing.Fixed on both the loading and unloading sides to ensure the stabili-ty of medium steel during cutting.

H型鋼供給模塊H-beam supPly module

矩形管直線導軌進給模塊，攔接式組裝

擺動式夾緊卡爪自動夾緊H型鋼；

大扭矩交流伺服電機，精確進給。

Rectangular tube linear guide rail feed module,splic-ing assembly:

Swinging clamping jaws automatically clampH-shaped steel;

High torque AC servo mator for precise leeding.

進出料模塊Ihcoming and outgoing modules

采用原有部件，為輥道結構方式；進給裝置為方管結構，配套重載夾緊夾鉗；驅動方式為交流伺服驅動。導軌和齒條采用原有結構；

配套電纜和傳感器采用新部件，考慮到這一部件的安全性要求，原來部件不使用。

Adopting the original components and adopting a roller table structure;The feeding device is a square tube structure,equipped with heavy-duty clamping clamps;The driving method is AC servo drive.

The guide rail and rack adopt the original structure:The supporting cables and sensors adopt new components,and considering the safety requirements of this component,the original components are not used.
