產品概述I DESCRIPTION

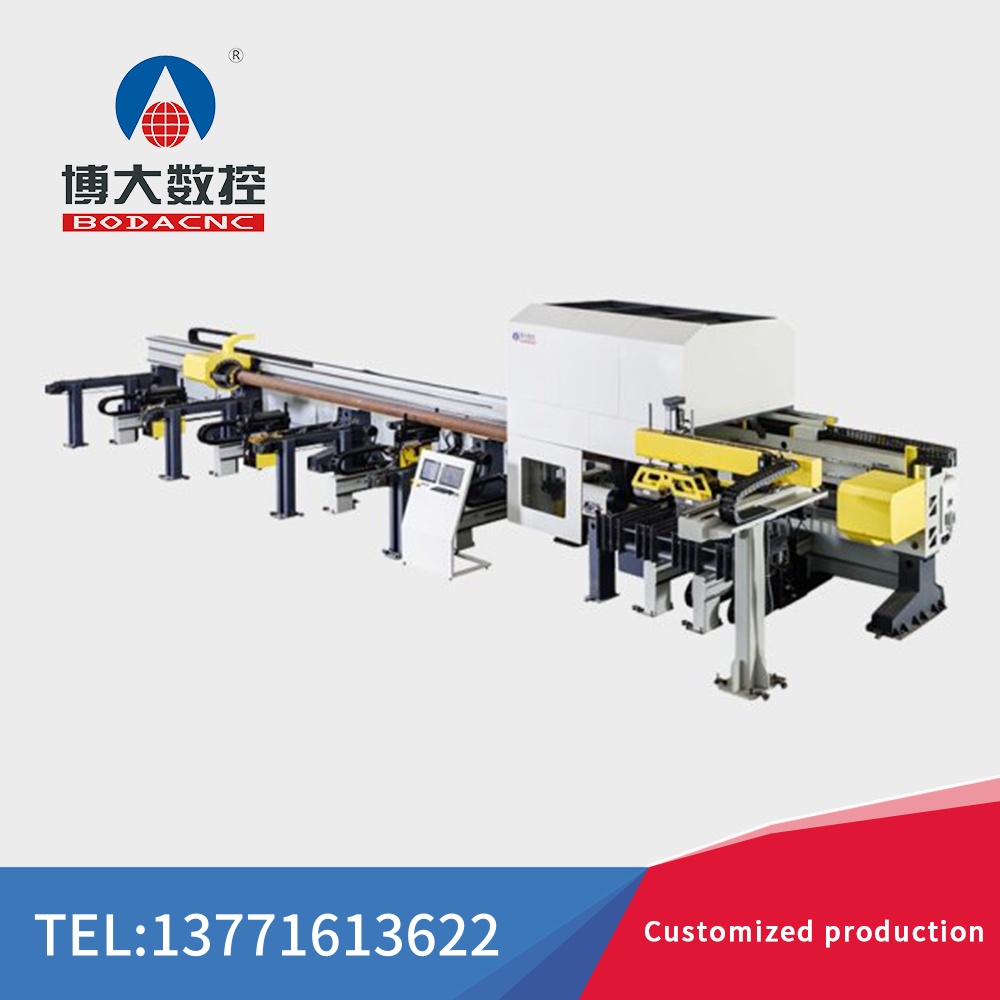

BO22L0101型CNC型等離子圓管切割機是我公司開發的管材切割機。具有結構剛性高、穩定性好、切割效率及加工精度高的特點；產品靈活性強、安全、操作方便、能耗低，屬環保型產品；主要用于圓管材的切割。產品整體布局緊湊、合理，占地面積小。整機由切割單元、原材料儲存區、自動上料機構、送料機構、成品工件自動出料機構及存放區等組成，實現可自動接收MES系統或上位機下發訂單，通過自動送料機構送料，由切制單元對圓管實現切斷等熱切割。切割中心采用五軸聯動龍門式桁架結構，割炬姿態控制采用CNC+TCP形式，實現提精度，提效率，提升用戶體驗；本機床可根據用戶的整體需求高度定制化生產。

機型特點I MODEL FEATURES

整體一體式布局，附屬部件模塊化設計、現場模塊式組裝、可擴展分步安調。

CNC一鍵式切割管理，機床自動化；配套自動編程軟件。

支持車間級MES;機床數據自動收集與發送。

配置自動化上下料分揀裝置，簡化自動化切割工序；省人力物力、降損作要求。 Overall integrated layout,modular design of accessory components,on-site modularasembhy scalahle step tby stepinstalation and adjustment.

CNC one click cutting management,machine tool automation;Equipped with automaticprogramming software.

Support workshoplevel MES:Automatie collection and transmission of machine tool data.

Configure automated loading and unloading sorting devices to simplify the automatedcutting process;Save manpower and resources,reduce operational requirements.

Inteligent pipe steel cuting device The BD22L0101 CNC plasma circular pipe cutting machine is a pipe cutting machine developed by our company.It has the characteristics of high structural rigidity,good stabilty,high cutting efficiency and machining accuracy;The product has strong flexibility,safety,easy operation,and low energy consumption,making it an environmentally friendly product;Mainly used for cutting circular pipes.The overall layout of the product is compact and

reasonable,with a small footprint.

The entire machine is composed of a cuting unit,a raw material storage area,an automatic feeding mechanism,a feeding mechanism,a finished workpiece automatic discharge mechanism,and a storage area.It can automatically receive orders from the MES system or the upper computer,and feed through the automatic feeding mechanism.The cuting unit can cut off the circular tube and perform thermal cutting.

The cuting center adopts a five axis linkage gantry truss structure,and the cutting torch attitude control adopts the form ofCNC-TCP to improve accuracy,etficiency and user experience;

This machine tool can be highly customized for production according to the overall neds of users.
